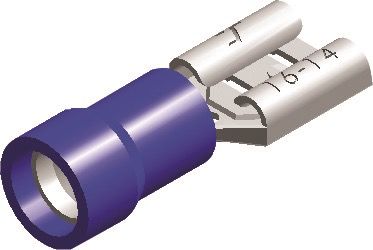

PVC HALF-INSULATED FEMALE DISCONNECTORS BLUE 2.8X0.8 (50PCS)
Article number SC1528B
Delivery time
Article in the following categories
Article number SC1528B
EAN-number 8718953080483
ColorBlue
Wire range1,5-2,5 mm2
QTY in packaging50x
Male / FemaleFemale
Tab width2,8mm
These female cable lugs are fully insulated cable lugs. These cable lugs are suitable up to 600V with a maximum operation temperature of 75 ° C, and built from a copper-tinned material with a PVC insulation. These cable skills are suitable for connecting a cable to each other, with the male counterpart. This high-quality cable shoe are equipped with an easy entry copper sleeve, this means that an extra sleeve has been pressed into the entrance to the cable lug in the production, so that the insertion of the cable is enormously simple. Especially with the professional user, this quality is greatly appreciated because it ensures an efficient method. The cable lugs are available in the colors red (0.5 ~ 1.5 mm²), blue (1.5 ~ 2.5 mm²), and yellow (4.0 ~ 6.0 mm²), and in various packaging units. In addition, there is a distinction in tab width, the most common tab widths are 2.8 mm, 4.8 mm, 6.3 mm and 9.4 mm with a tab thickness of 0.5 mm, 0.8 mm or 1.2 mm. This blue cable lug has a tab width of 2.8 mm.
