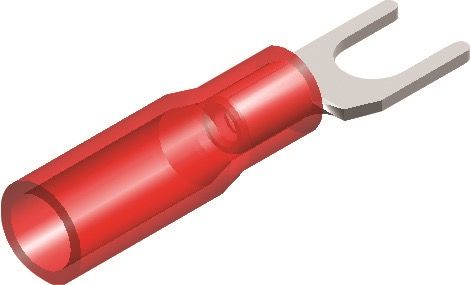

CABLE LUG THERMOSEAL FORK TYPE RED M5 (5PCS)
Article number BL-SC2205R
Delivery time
Article in the following categories
Article number BL-SC2205R
EAN-number 8718953030730
ColorRed
Wire range0,5-1,5 mm2
QTY in packaging5x
Diameter metricM5
This thermoseal cable fork. These cable forks are suitable up to 600V with a maximum operation temperature from -55 ° C to 125 ° C, and built from a copper-tinned material with a nylon insulation. These cable skills are suitable for easy mounting a cable to an (earth) point. The cable lugs are available in the colors red (0.5 ~ 1.5 mm²), blue (1.5 ~ 2.5 mm²), and yellow (4.0 ~ 6.0 mm²), in addition there are also different eye diameters Available in different packaging units. After pinching the cable lug on the cable, the insulation can be heated with a fohn that shrinks around the cable and ensures an extra sealing seal. As a result, it is resistant to isopropyl alcohol, trichloroethylene, gasoline, battery acid, diesel fuel, engine oil, antifreeze, brake fluid, 5% salt water.
